| Item Name | PVC Reducer | ||||||||
| Description | Reducing Coupling/ Reducer/ Reducing Socket PVC Pipe Fitting | ||||||||
| Material | 100% Virgin PVC | ||||||||
| Key Word | PVC Pipe，PVC Pipe Fittings, Reducer Coupling | ||||||||
| Color | Grey or Black or Blue | ||||||||
| Connection | Cement Type , Glue Type | ||||||||
| Pressure | PN10 | ||||||||
| Standard | BS EN ISO1452,ISO4422,DIN8063,GB/T1002.2 | ||||||||
| Certification | SGS,CE | ||||||||
| Brand | NULL/OEM | ||||||||
PVC pipes,pipe fittings and valves is widely used in water supply,chemical industry,water treatment,enviromental protection,pharmaceutical area etc.
It has following advantages:
• Light weight
• High strength
• Low resistance
• Corrosion resistance
• Easy installation
• Long service life
• Low cost
• Non-toxic and sanitation

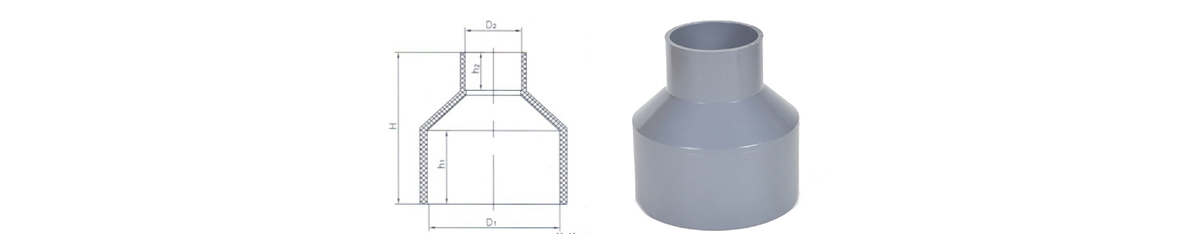

| Size(mm) | Dimension(mm) | ||
| H | h1 | h2 | |
| 25*20 | 43 | 19 | 16 |
| 32*20 | 49 | 22 | 16 |
| 32*25 | 49 | 22 | 19 |
| 40*20 | 57 | 26 | 16 |
| 40*25 | 60 | 26 | 19 |
| 40*32 | 60 | 26 | 22 |
| 50*20 | 66 | 31 | 16 |
| 50*25 | 67 | 31 | 19 |
| 50*32 | 68 | 31 | 22 |
| 50*40 | 69 | 31 | 26 |
| 63*20 | 80 | 38 | 16 |
| 63*25 | 80 | 38 | 19 |
| 63*32 | 81 | 38 | 22 |
| 63*40 | 82 | 38 | 26 |
| 63*50 | 81 | 38 | 31 |
| 75*32 | 95 | 44 | 22 |
| 75*40 | 94 | 44 | 26 |
| 75*50 | 93 | 44 | 31 |
| 75*63 | 94 | 44 | 38 |
| 90*50 | 99 | 51 | 31 |
| 90*63 | 99 | 51 | 38 |
| 90*75 | 109 | 51 | 44 |
| 110*50 | 124 | 61 | 31 |
| 110*63 | 126 | 61 | 38 |
| 110*75 | 128 | 61 | 44 |
| 110*90 | 128 | 61 | 51 |
| 125*63 | 145 | 70 | 38 |
| 125*75 | 144 | 70 | 44 |
| 125*90 | 145 | 70 | 51 |
| 125*110 | 148 | 70 | 61 |
| 140*90 | 159 | 76 | 51 |
| 140*110 | 162 | 76 | 61 |
| 160*90 | 179 | 86 | 51 |
| 160*110 | 271 | 86 | 61 |
| 160*125 | 180 | 86 | 70 |
| 160*140 | 182 | 86 | 76 |
| 200*110 | 220 | 106 | 61 |
| 200*160 | 221 | 106 | 81 |
| 225*110 | 221 | 120 | 106 |
| 225*160 | 234 | 120 | 81 |
| 225*200 | 243 | 119 | 106 |
| 250*110 | 271 | 131 | 61 |
| 250*160 | 271 | 131 | 86 |
| 250*200 | 271 | 131 | 106 |
| 250*225 | 270 | 131 | 119 |
| 280*250 | 301 | 147 | 132 |
| 315*110 | 336 | 164.5 | 61 |
| 315*160 | 336 | 164.5 | 86 |
| 315*200 | 336 | 164.5 | 106 |
| 315*250 | 336 | 164.5 | 131 |
| 315*280 | 338 | 164.5 | 147 |
| 355*200 | 379 | 184 | 106 |
| 355*315 | 380 | 184 | 164 |
| 400*200 | 422 | 206 | 106 |
| 400*250 | 422 | 206 | 131 |
| 400*315 | 422 | 206 | 164 |
| 400*355 | 420 | 206 | 184 |
Changzhou Xita Plastic Co., Ltd is a professional supplier of UPVC/CPVC/PE/PPR Pipes, pipe fittings, valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc.
We insist in the principal of ""Quality First, Clients First". Your satisfaction is our eternal pursuit. We Strictly follows ISO9001 quality system to arrange manufacturing. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, Xita Plastic ensures that every single product meets the corresponding inspection standard.
We could provide products as follows:
1. PVC pipe fittings-Cement PN10: 20mm~400mm
2. PVC pipe fittings-rubber ring fittings PN10: 63mm~355mm
3. PVC pipe fittings-Cement PN16: DN15~DN200
4. PVC Valves: Ball valves, true union valves, butterfly valves, check valves, bottom valves, Y strainers
5. PPR pipe fittings
6. PE pipe and fittings
7. PPH pipe fittings
Our sales staff is experienced in plastic piping area for 9 years. We will give you suggestions for your better choice.
"Xita Plastic" warmly welcomes friends and clients all over the world for further cooperation.
